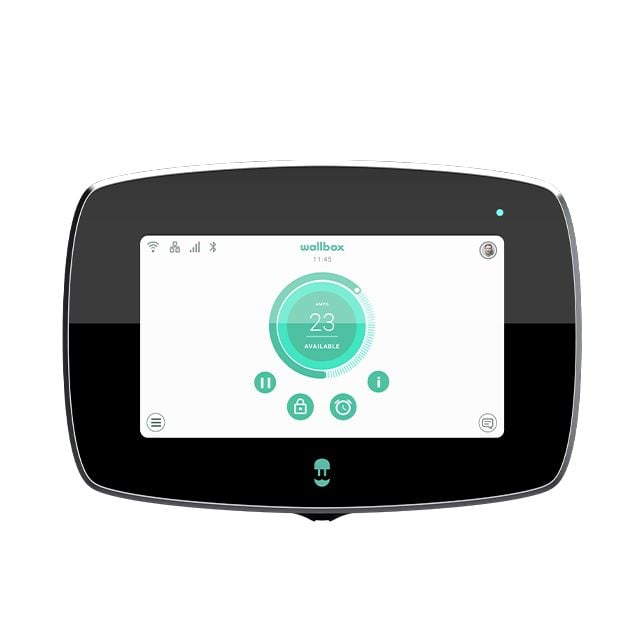

Wallbox Commander 2 CMX2-0-2-4-8-002 charging station
(22 kW, incl. 5m type 2 cable, RFID/PIN/APP, integrated energy meter, LAN/Wi-Fi/Bluetooth, OCPP 1.6, DC protection, black)
SKU
001-027-000014
Special Price
€1,099.00
Regular Price
€1,179.00
Delivery time: 1-3 working days
- Shared charging made easy
- Up to 22 kW of charging power (charge 10x quicker)
- Configurable charging power
- Incl. 5 m type 2 charging cable (for all type 2 electric cars)
- Integrated energy meter
- Access control via RFID, PIN or App
- Communication via LAN, Wi-Fi or Bluetooth
- Integrated DC fault current sensor
- Status indication using the integrated display, LED and in the app
- Easy operation directly at the charging station via touchscreen display
- Compatible with various backend systems via OCPP 1.6
- Incl. free MyWallbox Business backend
Recommended by our product management
| Manufacturer | Wallbox |
|---|---|
| Colour | Black |
| Product dimensions (wxhxd) | 221x152x115 mm (ohne Kabel) |
| Weight | 2,4 kg (ohne Kabel) |
| Degree of protection | IP54 splash-proof, suitable for outdoor use |
| Installation variations | Wall mount, Pedestal column |
| Delivery includes | Charging station, instruction manual, installation set |
| Charging power | 22 kW, 11 kW, 7,4 kW, 5,5 kW, 3,7 kW, configurable |
| Number of charge points | 1 |
| Rated current | 6 A, 8 A, 10 A, 12 A, 13 A, 14 A, 16 A, 20 A, 24 A, 25 A, 32 A, configurable |
| Voltage | 230/400 V |
| Phase | 3-phase |
| Connection | Type 2 charging cable |
| Cable length | 5 m |
| Safety features | DC protection |
| Energy meter | integrated |
| Access protection | RFID, App, PIN |
| Status display | LED, Display, App |
| Communication module | LAN, Wi-Fi |
| Additional interfaces | Bluetooth |
| Included features | Smartphone App |
| Communication protocol | OCPP |
Write Your Own Review
Downloads
Default Category
-
Installationsanleitung | Wallbox Commander 2 Size: (2.13 MB) Downloads: 0
-
Benutzerhandbuch | Wallbox Commander 2 Size: (4.75 MB) Downloads: 0
-
Flyer | Wallbox Commander 2 Size: (948.09 KB) Downloads: 0
-
Datenblatt | Wallbox Commander 2 Size: (160.91 KB) Downloads: 0
